Architectural Narratives
A series of visual explorations that translate architectural ideas, spatial relationships, and site data into clear graphical narratives.
Diagram Types

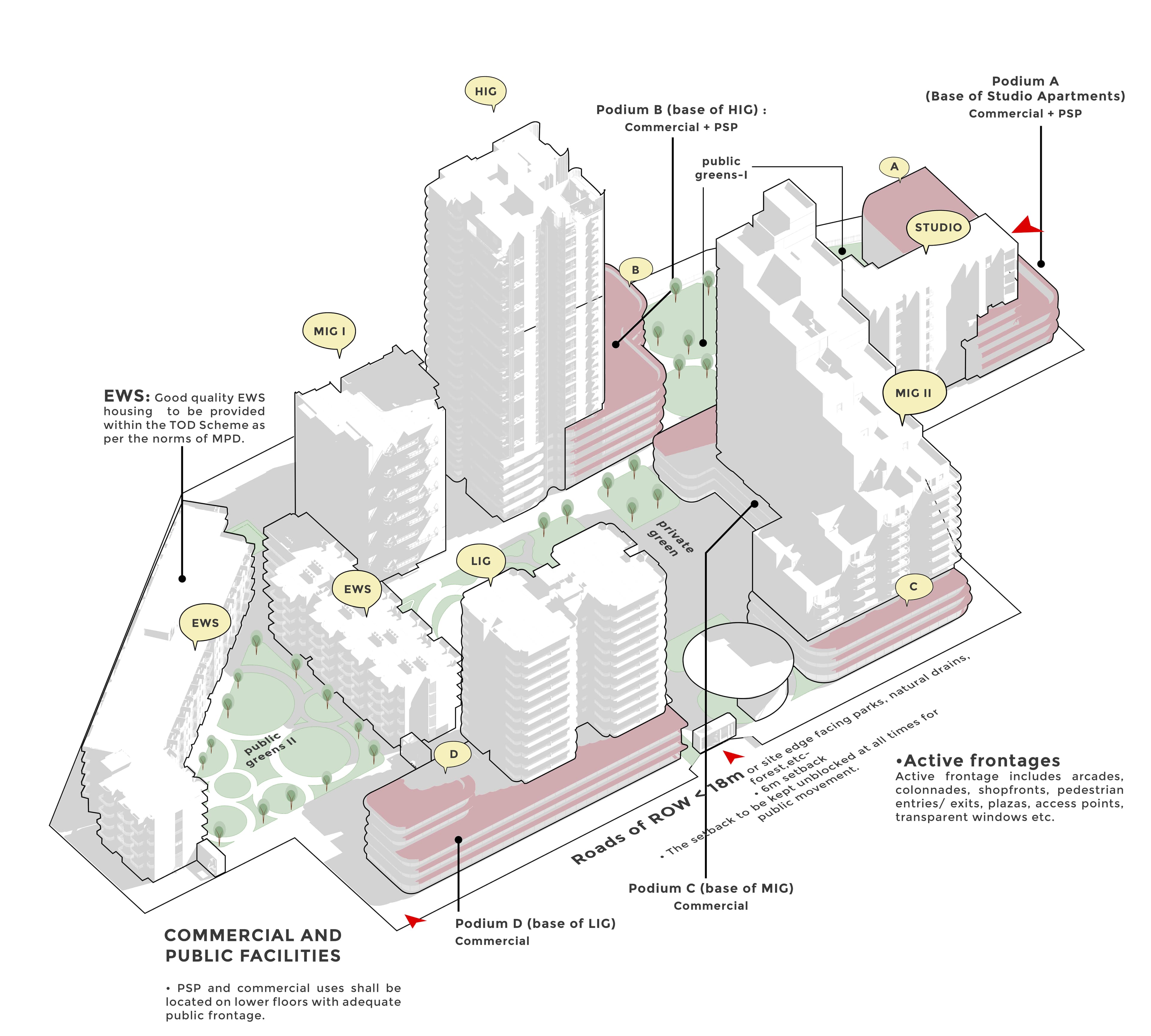

Axonometric
Parallel projection diagrams used to illustrate architectural concepts and spatial relationships. These diagrams help communicate design intent through exploded views or unified spatial compositions.

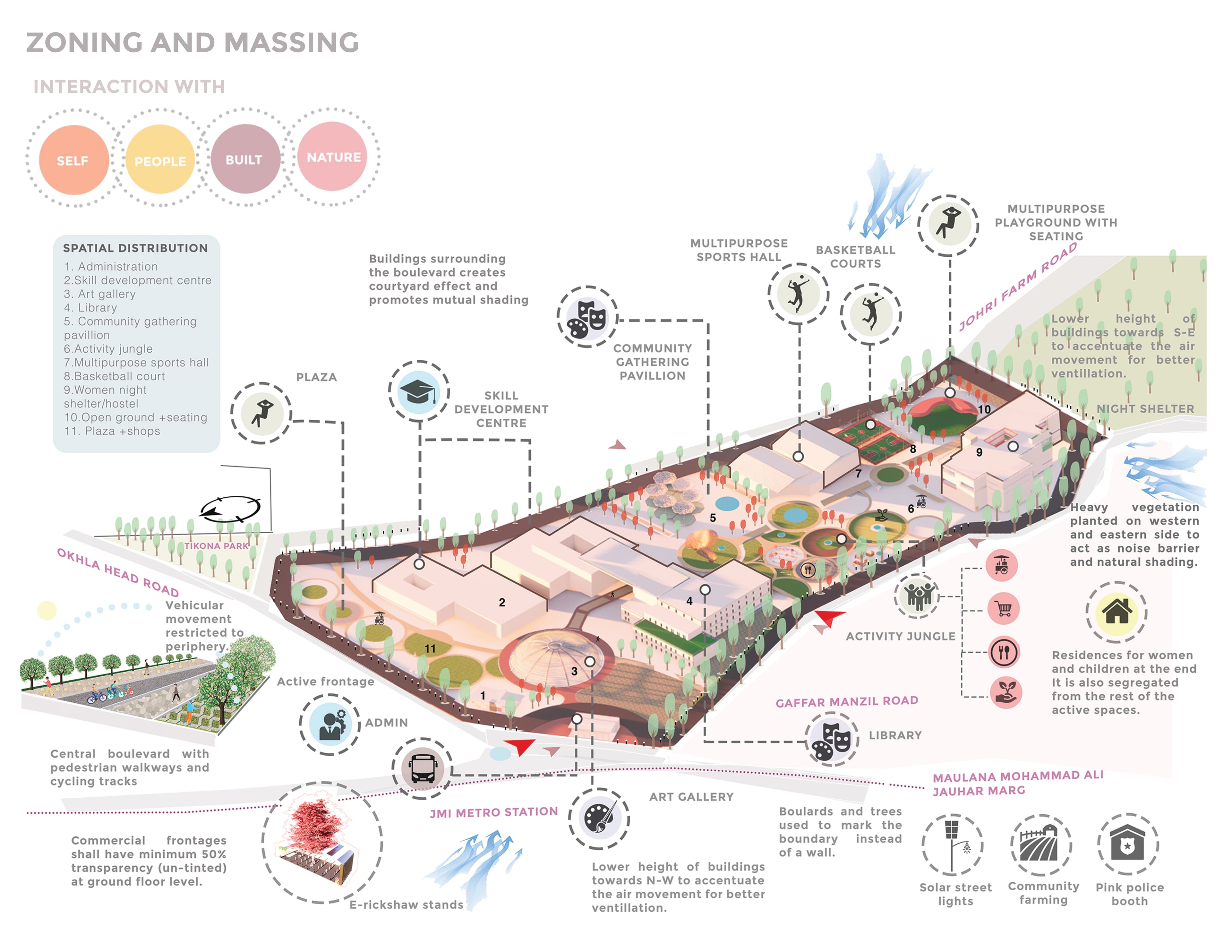

Axonometric 2
A secondary axonometric exploration extending the spatial narrative through layered programmatic relationships and circulation patterns.
Axonometric 3
A third axonometric study examining material assemblies and structural systems within the architectural composition.

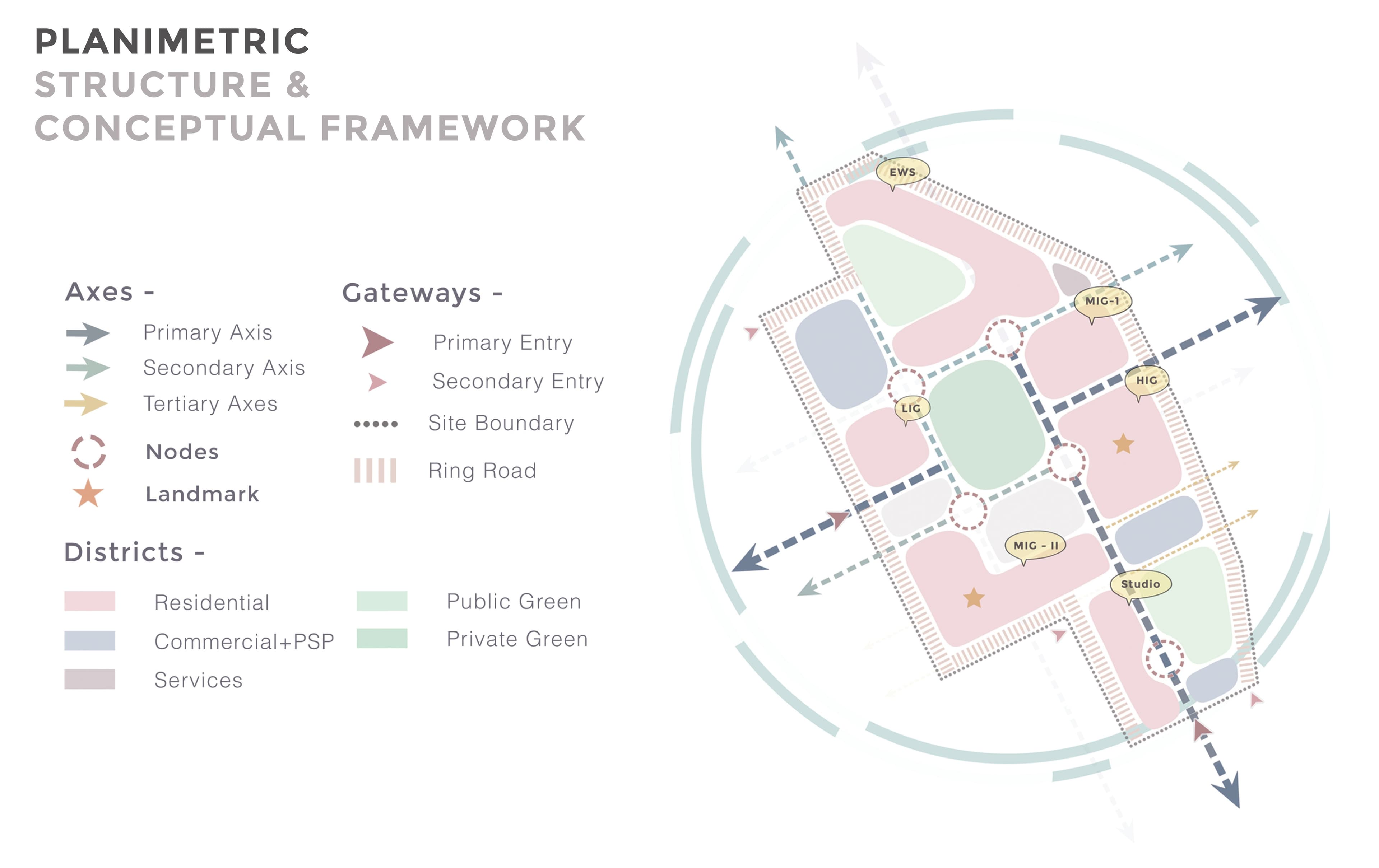

Planimetric
Top-view diagrams that illustrate program organization, spatial relationships, and site planning strategies.

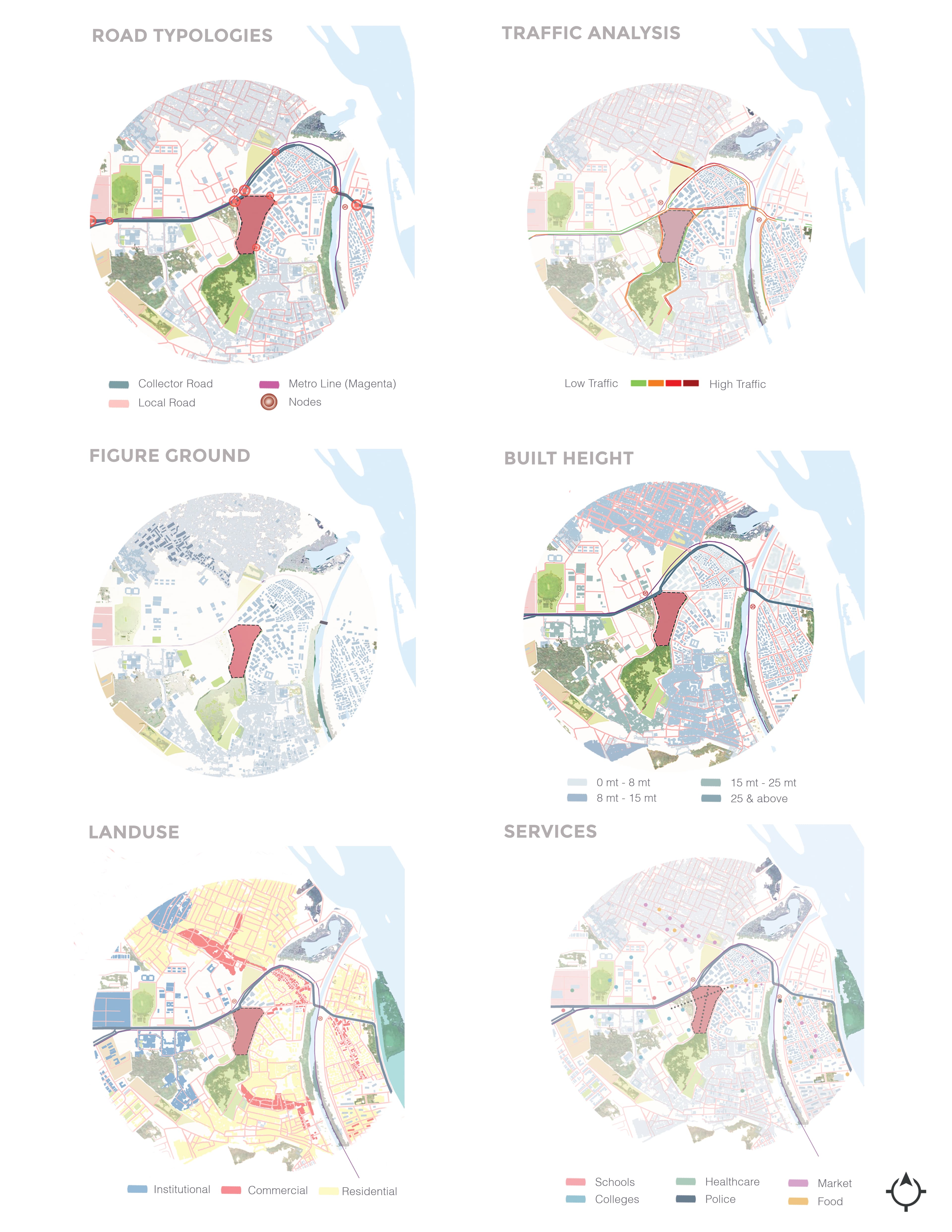

Mapping
Layered architectural maps that visualize contextual, environmental, and functional data across a site or urban fabric.

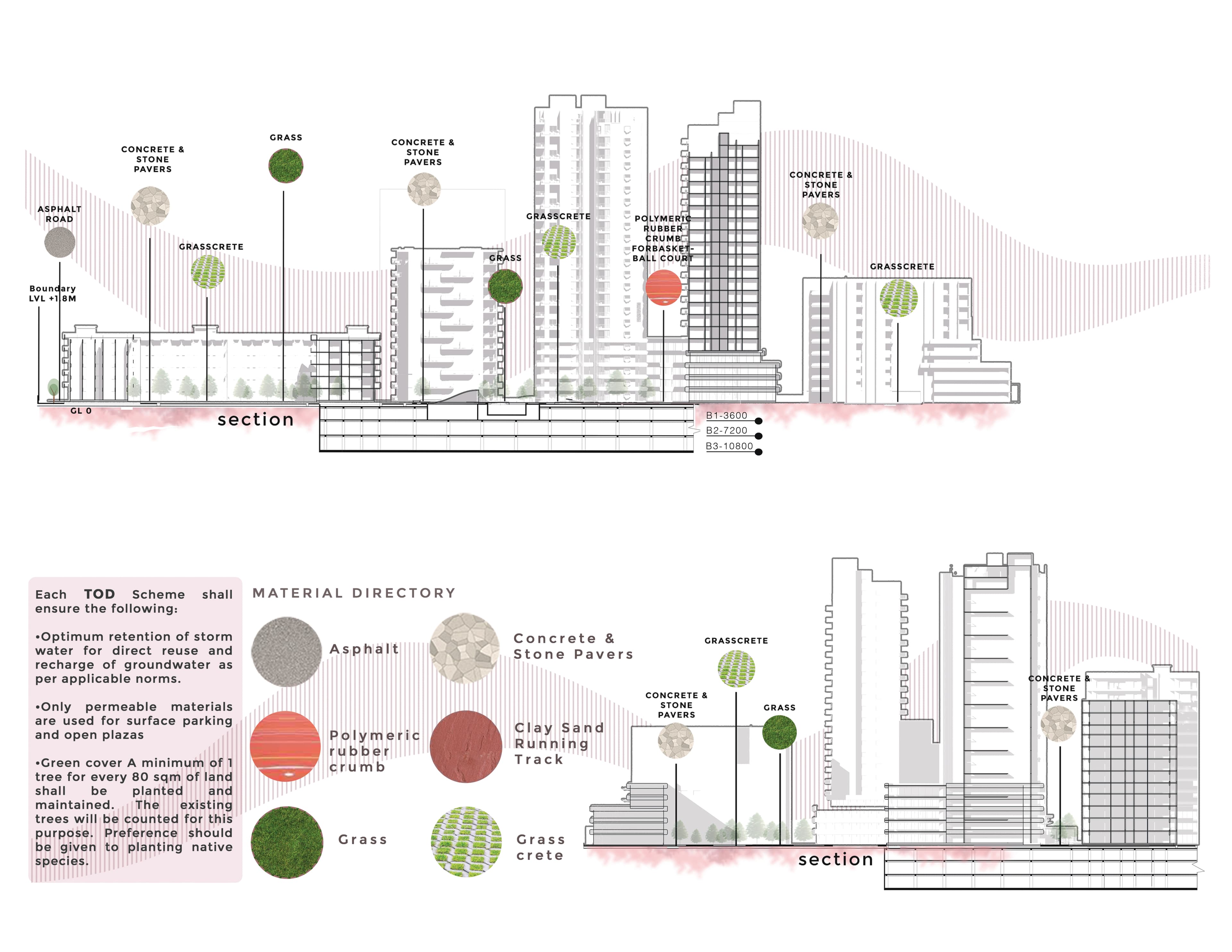

Sectional
Vertical cut diagrams revealing spatial relationships, environmental forces, and human scale within architectural systems.
